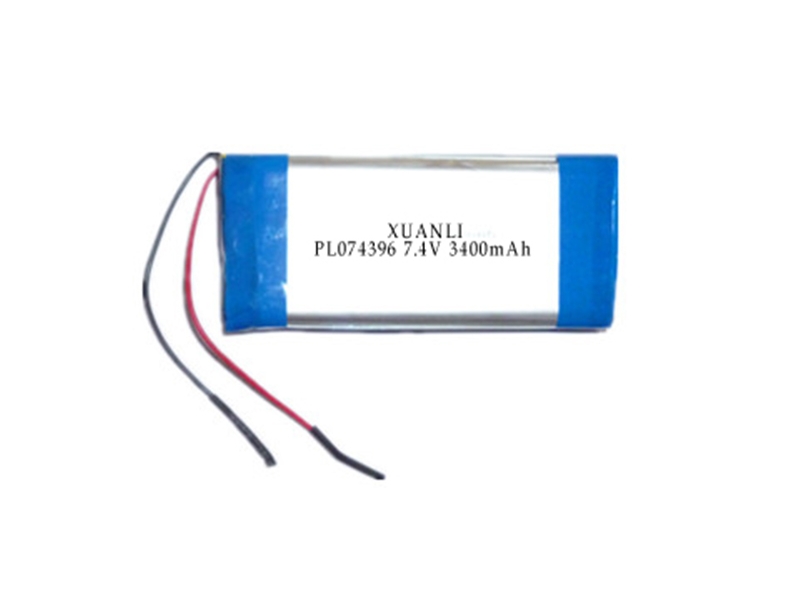

7.4V polymer lithium battery Product model: XL 7.4V 3400mAh

7.4V polymer lithium battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)

Single battery model: 074396

· Single battery voltage: 3.7V

· Nominal voltage after the battery pack is assembled: 7.4V

· Single battery capacity: 3400mAh

· Battery combination: 2 strings and 1 parallel

· Battery voltage range after combination: 6.0V~8.4V

· Battery capacity after combination: 3400mAh

· Battery pack power: 25.16W

· Battery pack size: 14*44*99mm

· Maximum discharge current: <3.4A

· Instantaneous discharge current: 6.8A~10.2A

· Maximum charging current: 0.2-0.5C

· Charge and discharge times: >500 times

· Main chip: (Seiko, TI)

7.4V polymer lithium battery

· Comply with relevant national standards and requirements for batteries

· All finished battery products have been calibrated and tested before leaving the factory. They can be used directly and normally
